Rubber Internal Mixer / Banbury Mixer for Tire Rubber Compounding

Qingdao Shun Cheong Rubber machinery Manufacturing Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Rubber Internal Mixer / Banbury Mixer for Tire Rubber Compounding from wholesalers

    Buy cheap Rubber Internal Mixer / Banbury Mixer for Tire Rubber Compounding from wholesalers
    • Buy cheap Rubber Internal Mixer / Banbury Mixer for Tire Rubber Compounding from wholesalers
    • Buy cheap Rubber Internal Mixer / Banbury Mixer for Tire Rubber Compounding from wholesalers
    • Buy cheap Rubber Internal Mixer / Banbury Mixer for Tire Rubber Compounding from wholesalers
    • Buy cheap Rubber Internal Mixer / Banbury Mixer for Tire Rubber Compounding from wholesalers
    • Buy cheap Rubber Internal Mixer / Banbury Mixer for Tire Rubber Compounding from wholesalers

    Rubber Internal Mixer / Banbury Mixer for Tire Rubber Compounding

    Ask Lasest Price
    Certification : CE, ISO
    Brand Name : SFC
    Model Number : 110L
    Price : US$15,000.00-20,000.00
    Payment Terms : T/T,L/C
    Supply Ability : 60set/Month
    Delivery Time : 25-35 days
    • Product Details
    • Company Profile

    Rubber Internal Mixer / Banbury Mixer for Tire Rubber Compounding

    X(S)N-110X30 Rubber Mixer Machine
    Professional rubber kneader for plasticizing and mixing natural rubber, synthetic rubber, reclaimed rubber, plastics, and foaming plastics with high efficiency and reliability.
    Technical Specifications
    Model: X(S)N-110X30
    Total Mixing Chamber Volume: 250L
    Working Chamber Volume: 110L
    Driving Motor Power: 185 kW
    Tilting Motor Power: 5.5 kW
    Rotor Speed: 30/24.5 R/Min
    Cooling Water Pressure: 0.3~0.4 MPa
    Heating Steam Pressure: 0.5~0.8 MPa
    Dimensions: 4075*2712*3580 mm
    Control System: PLC
    Certifications: CE, ISO, GOST, SGS
    Warranty: 1 Year
    Product Applications
    • Plasticizing and mixing of natural rubber, synthetic rubber, and reclaimed rubber
    • Processing of plastics and foaming plastics
    • Mixing materials of various consistencies and viscosities
    Key Features & Components
    Mixing Chamber
    W-shaped body with side boards made of high-quality steel plates, chrome-plated internal walls, and jacketed for cooling/heating fluid circulation.
    Rotor System
    Hollow Banbury-type blades with hard alloy welding, chrome plating, and polished surfaces for durability and efficient mixing.
    Cooling/Heating System
    Integrated piping system for precise temperature control through rotors, mixing chamber jackets, and top ram.
    Tilting Mechanism
    140° tilting capability with cycloidal gear reducer and worm gear system for easy material discharge.
    Sealing Systems
    Advanced dust stop and sealing devices prevent material leakage and ensure clean operation.
    Control Systems
    PLC-controlled pneumatic and electrical systems with imported components for reliable operation and overload protection.
    Product Images

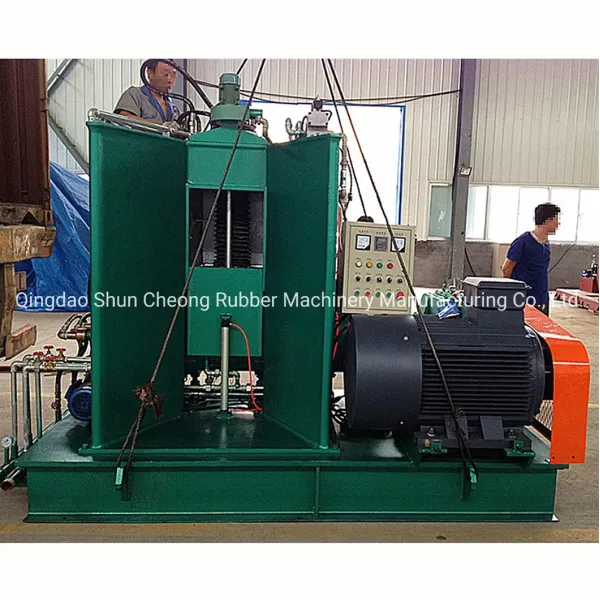

    X(S)N-110X30 Rubber Mixer Machine side view X(S)N-110X30 Rubber Mixer Machine operational view X(S)N-110X30 Rubber Mixer Machine detailed components
    Complete Model Specifications
    ItemUnitX(S)N-5x32X(S)N-10x32X(S)N-20x32X(S)N-25x32X(S)N-35x30X(S)N-55x30X(S)N-75x30X(S)N-110x30X(S)N-150x30X(S)N-200x30
    Total Volume of Mixing ChamberL1525455575125170250325440
    Working Volume of Mixing ChamberL5102025355575110150200
    Driving Motor PowerKW112237375575110185220280
    Tilting Motor PowerKW1.11.11.51.52.22.245.51111
    Rotational Speed of The Rotorr/min32/23.532/2532/2732/2730/24.530/24.530/24.530/24.530/24.530/24.5
    Pressure of Compressed Airm³/min≥0.5≥0.5≥0.7≥0.7≥0.9≥1.0≥1.0≥1.5≥2.0≥4.0
    Pressure of Cooling WaterMPa0.2~0.40.2~0.40.2~0.40.2~0.40.3~0.40.3~0.40.3~0.40.3~0.40.3~0.40.3~0.4
    Pressure of Heating SteamMPa0.5~0.80.5~0.80.5~0.80.5~0.80.5~0.80.5~0.80.5~0.80.5~0.80.5~0.80.5~0.8
    Dimensions (L*W*H)mm1850*1200*25802640*1650*23502675*1650*25602675*1650*25603200*1900*29503230*1927*29583325*2615*31504075*2712*35804250*2750*41064250*3400*4215
    Gross Weightt~2.1~3.3~4~4.5~6.3~7.1~9.5~14.9~19.5~22.5
    Manufacturer Information
    Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd
    Specialized high-tech rubber machinery manufacturer with ISO9001:2015, CE, and SGS certifications. Products exported to over 50 countries worldwide.
    Product Range
    • Rubber Kneaders and Mixing Machines
    • Rubber Vulcanizing Presses
    • Batch Off Coolers and Rubber Calenders
    • Waste Tire Crushers and Rubber Extruders
    • Complete rubber production lines
    Quality Commitment
    • Strict quality inspection for all components
    • Comprehensive pre-shipment testing and trial runs
    • 3-year warranty on main parts, 1-year on wearing parts
    • Free technical support and remote assistance
    • On-site engineer support when needed
    Certifications & Quality Assurance
    International certifications and standards Quality management system certification European Union CE certification SGS certification and quality assurance
    Customer Support & Services
    • Custom machine design and engineering support
    • Production progress tracking with photo updates
    • Complete documentation package including drawings and manuals
    • Overseas installation and commissioning services
    • Comprehensive operator training programs
    Frequently Asked Questions
    What does your factory do regarding quality control?
    Every machine undergoes comprehensive quality control from component inspection to final assembly testing. All equipment is fully assembled and rigorously tested before shipment to ensure optimal performance.
    What's the machine quality guarantee?
    We provide a 1-year quality guarantee using world-renowned brand components to maintain perfect working condition and long-term reliability.
    Are you able to provide overseas installation and commissioning?
    Yes, we offer overseas technical support and installation services. Small machines typically require 2-3 days, while complete production lines may take approximately 30 days for commissioning.
    How can I trust you to deliver the right machine?
    Our company culture is built on innovation, quality, integrity, and efficiency. We have established partnerships with world-renowned rubber manufacturers and maintain transparent communication throughout the ordering process.
    How can we visit your facility?
    We are located in Qingdao City, Shandong Province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting customers.
