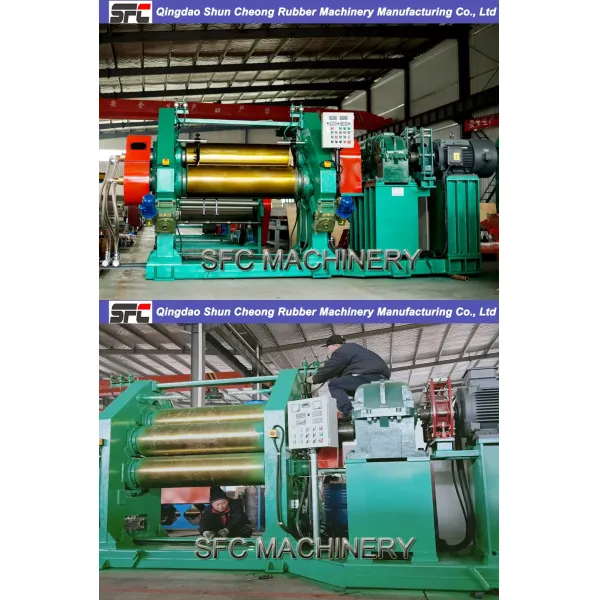

Professional Design Open Type Rubber Mixing Mill
Main Structure Instructions
This mixing mill is mainly composed of machine body, driving part,
nip adjusting device, safety equipment, pin universal coupling,
emergency stopping device, etc.
1. Rolls
The rolls' surface is made of chilled cast iron, hard and anti-wear
with the hardness of 68 ~ 72HSD. The rolls' structure is hollow
style and the surface is plated Nickel-phosphorus alloy.
2. Machine Frame, gland
Machine frame and gland adopt casted structure after annealing and
processing.
3. Base
We adopt whole base welded structure after annealing, completely
processed by precise machine tool. The base is of strong rigidity,
not deformed and the surface is smooth and anti-wear.
4. Roll Bearings
The 2 ends of the rolls adopt antifriction bearings. The bearings
are fixed inside bearings body and the bearing body applies casted
iron material.
Roll Bearings adopt automatic thin oil lubrication style.
5. Reducer
We adopt the hard gear reducer matched with XK-550B rubber mixing
mill. The gear lubrication adopts thin oil pump lubrication (forced
recycled spray type) equipped with outside cooler to cool off the
lubrication oil. The reducer is also equipped with lubrication oil
filter.
6. Nip Adjusting Equipment
This mill adopts electric adjusting mode, the nip range is
0.8-15mm.
7. Machine Safety Protection Device
In order to protect the safety of main parts of the machine, we
configure this rubber mixing machine with safety pad protecting
device. When the machine works overload, the safety pad will break
to avoid producing damage to main parts of the machine.
8. Brake Equipment
This rubber mixing machine adopts magnetic plug brake. Once the
magnetic plug works, the rolls won't rotate 1/4 circumference of
roll.
9. Emergency Brake Equipment
Press-button type emergency stop equipment, both configured with
one group front and back of the machine.
10. Stop Guide
This rubber mixing machine adopts steel stop guide. The part
contacting with rolls is inlaid with nylon.
11. Rolls cooling method
Rollers' internal is with spray cooling, the external connected to
rotary joint.
12. Before the machine leaving the factory, the wire from the motor
to electric control cabinet is connected. The customer only needs
to connect the control cabinet wire to the power supply before
using the machine.
| Item | XK-160 | XK-250 | XK-360 | XK-400 | XK-450 | XK-550 | XK-560 | XK-660 | XK-710 |
| Roll diameter | mm | 160 | 250 | 360 | 400 | 450 | 550 | 560-510 | 660 | 710 |
| Roll working length |
| 320 | 620 | 900 | 1000 | 1200 | 1500 | 1530 | 2130 | 2200 |
| Front roll linear speed | r/min | 9 | 16.3 | 16.7 | 19.3 | 21.8 | 22.5 | 27.2 | 28 | 31.9 |
| Speed ratio of rolls |
| 01: 01.4 | 01: 01.1 | 01: 01.3 | 01: 01.3 | 01: 01.3 | 01: 01.2 | 01: 01.2 | 01: 01.2 | 01: 01.5 |
| Max roll space | mm | 4.5 | 8 | 10 | 10 | 12 | 16 | 15 | 0.5-15 | 0.5-15 |
| Compound feeding capacity | kg | 1-2 | 10-15 | 20-25 | 18-35 | 50 | 50-65 | 50-65 | 165 | 190 |
| Motor power | kW | 5.5 | 18.5 | 30 | 45 | 55 | 110 | 90 | 240 | 280 |
| Dimensions(L× W× H) |
|
|
|
|
|
|
|
|
|
|
| L | mm | 1133 | 2722 | 4200 | 4920 | 5405 | 6646 | 6270 | 7280 | 8185 |
| W | mm | 920 | 1115 | 1780 | 1780 | 1740 | 2736 | 2282 | 3400 | 3910 |
| H | mm | 1394 | 1345 | 1760 | 1800 | 1790 | 2105 | 2000 | 2530 | 2270 |
| Gross weight | T | ~2 | ~3.2 | ~6.5 | ~8 | ~11.4 | ~22 | ~22.5 | ~49 | ~51 |
We can design various kinds of non-standard rubber machinery
according to your requirements.
