EPDM bonded washer/High quality rubber processing machinery

Product Picture




Production line introduction

Purpose: A simple pressure washer that provides a leak-proof seal for water, gas, oil and other fluids. EPDM rubber has vulcanized metals in galvanized mild steel, aluminum and stainless steel. Adhesive washers are a cost-effective solution for roof screw connection.

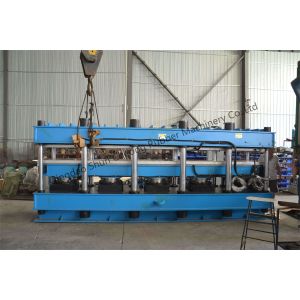

Plate vulcanizing machine details:

1. The machine is composed of press plate, up and down platform, piston stroke, hydro-cylinder, hydraulic station and pillar column.
2. The hot plates are obtained by 35# steel plates after normalizing handling and then adopting double scale rolling.
3. Up and down platforms adopts Q235 steel plates. In order to guarantee the make precision, it is applied with automatic cutting baiting, mechanical slicer producing welded groove, carbon dioxide gas shielded welding. It all adopts alloy welding wire welding and after welding takes whole enter into stove to go on the hot treatment to remove the welding stress exhaustively. And then go on mechanical producing to guarantee it won't become deformed.
4. The cylinder's material is QT500-7 and HT200 for piston. Moreover, we can also manufacture the cylinder with ZG270-500 material and piston with cold hard chilled alloy cast iron.
5. And sealing structure applies the combined structure with double sealing ring and one dustproof ring to guarantee longer service. The piston rise and fall under the working hydraulic pressure. When the piston fall(plates starting to work) depending on the weight of the plates, platform and piston to drive the hydraulic oil flowing back oil stock container to realize falling purpose.
6. The assembled oil pump is the source of power of press which supplies working oil with certain pressure. The oil enter into cylinder through controlling valve and move the hand shank to different places to realize the rising and falling of the piston.
7. The electrical controlling system adopts automatic and semi-automatic controlling method. When adopting automatic controlling way, it can be switched into manual control.

Parameter:

We can design and manufacture all kinds of non-standard plate vulcanizing press according to the customers' definite requirements.
Company information:

1.20 years on vulcanizing press manufacturing and exporting.
2. Delivery within 35 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao Shun Cheong.
7. It has passed CE1282 vucanizing press quality certificate.

Packaging:

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases or container.



FAQ:

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.

Before leaving factory, this plate vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.


OUR SERVICE:

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.








Welcome your inquiry!
