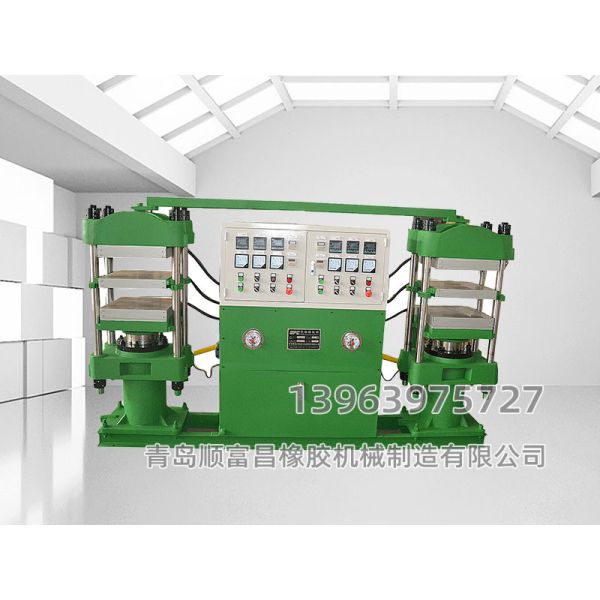

Duplex Rubber Product Vulcanizing Press:

Product Description

Twin Vulcanizing Press, Duplex Vulcanizing Press, Rubber Vulcanizing Press, Vulcanizing Press, Hot Vulcanizing Press, Plate Vulcanizing Press

Usage
This plate vulcanizing press is used for all kinds of vulcanizing mould, rubber and plastic.
This plate vulcanizing press can be using in petroleum industry to produce sealing parts.

Structural Features
1. plate vulcanizing press is composed of hot plates, plates, up and down platforms, piston stroke, hydro-cylinder, hydraulic station and electrical control system. It can be equipped with push-pull mould device to move the mould on the machine.
2. Plates are constituted with welded Q235 steel plates through mechanical ball blast rust removal, spraying zinc rich series paint, shake to remove stress, then transferred into mechanical producing.
3. Hot plates are obtained by 35# steel plates after normalizing handling and then adopting double scale rolling. It is equipped with a set of electric control valves to realize the automatic adjusting of steaming temperature.
4. Up and down platforms adopts Q235 steel plates. In order to guarantee the make precision, it is applied with automatic cutting baiting, mechanical slicer producing welded groove, carbon dioxide gas shielded welding. It all adopts alloy welding wire welding and after welding takes whole enter into stove to go on the hot treatment to remove the welding stress exhaustively.
5. Hydro-cylinder adopts ZG270-500 and piston stroke adopts hard cold chilled alloy cast iron. And sealing structure applies the combined structure with double sealing ring and one dustproof ring to guarantee longer service.
6. Electrical control system adopts PLC automatic control to realize automatic closing, opening mould and gas exit equipment. The plate vulcanizing press can also switch into hand control.

Parameter:

ParameterType	XLB-400×400	XLB-500×500	XLB-600×600	XLB-700×700	XLB-750×850
Total Pressure(MN)	0.5	0.63	1.00	1.20	1.60
Plate Distance(mm)	125	125	125	125	200
Working Layer NO.	1	1	1	1	1
Unit Area Pressure of Hot Plate(Mpa)	3.13	2.52	2.77	2.45	2.51
Plunger Stroke(mm)	250	250	250/400	250	400
Heating Mode	Electricity/ Stream	Electricity/ Stream	Electricity/ Stream	Stream	Electricity/ Stream
Motor Power(KW)	2.2	2.2	2.2	2.2	3
Size(L×W×H(mm)	1600×500×1480	1750×600×1540	1880×720×1680	2000×850×1750	2250×1200×2200
