    Automatic Grade Vertical Structure Rubber Calender Machine with 230mm Roller Diameter

    Ask Lasest Price
    Brand Name : SFC
    Certification : CE, ISO
    Price : US$12,000.00-56,000.00
    Payment Terms : T/T,L/C
    Supply Ability : 25set/month
    Delivery Time : 25-35 days
    • Product Details
    • Company Profile

    Automatic Grade Vertical Structure Rubber Calender Machine with 230mm Roller Diameter

    Basic Info.

    Model NO.
    XY
    Customized
    Customized
    Automatic Grade
    Automatic
    Structure
    Vertical
    Type of Tire Machinery
    Rubber Sheet Calendering Machine
    Roller Diameter
    230
    Voltage
    380
    Linear Velocity
    2.1-21
    Transport Package
    Stand Export Packages
    Specification
    CE, ISO
    Trademark
    SFC
    Origin
    China
    HS Code
    8477800000

    Product Description

    XY Rubber Calender Machine With Auxiliary Clander Machines

    Description

    Xy Rubber Calender Machine with Auxiliary Clander Machines


    Application:

    Rubberizing and fractioning of textile material, rubberizing of wirecord fabric, sheet, and counter plate(embossed) of rubber material, separation of fabric and film, as well as joint of multi-layer laminate film.

    General design:

    It mainly contains roller, rack, backplane, adjustment, device, transmission system, roller temperature control device, security device, lubricating device, etc.

    Features:

    1. The roller is made of chilled cast iron alloys, whose work surface has high hardness, wear-resistent and durable life. Steam, cooling water, and heat-conducting oil can pass into the rollers cavity, so that the working temperature can be adjusted in order to meet the technical requirements.

    2. Roll spacing can be adjusted both by manual or electric mode.

    3. Roller bearings lubricating can adopt drier oil or dilute oil.

    Xy Rubber Calender Machine with Auxiliary Clander Machines
    Xy Rubber Calender Machine with Auxiliary Clander Machines
    Xy Rubber Calender Machine with Auxiliary Clander Machines

    Main Parameter:
    Parameter/TypeXY-4I 630
    XY-4L 630
    XY-4630
    XY-41120XY-41400XY -41500XY-41730XY-42130XY-42430
    Roll Diameter(mm)
    230360400450610710810
    Roll Working Length(mm)
    630112014001500173021302430
    Roll Ratio1:1:1:10.73:1:1:0.731:1.383:1.383:11:1.5:1.5:11:1.4:1.4:1
    1:1.4:1.4:1.4
    1:1.5:1.5:11:1.5:1.5:1
    Middle Roll Speed(r/min)2.1-212-20.13-26.32.5-258-508-502-20
    Adjusting Nip Range(mm)0-100-100-100-10200-200.5-25
    Min. Product Thickness(mm)0.20.20.20.20.150.150.1
    Calendering Product Width(mm)50092012001250150019002150
    Motor power(KW)155575110185185280
    Dimension(L×W×H)(mm)3800x930x18903300×940×23506600×162×24906500×1970×27406580×2460×29207010×4150×37309800×4260×5720


    Packaging

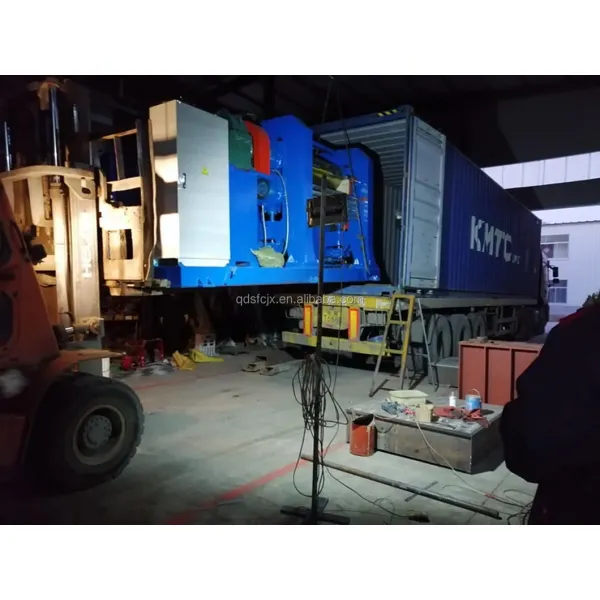

    Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

    Xy Rubber Calender Machine with Auxiliary Clander Machines

    Our Services

    ♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
    ♦ In the process of production, we will take photos and send to customers for their track the progress.
    ♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
    ♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
    ♦ We supply overseas engineer service and help to train your workers to operate the machine.

    Xy Rubber Calender Machine with Auxiliary Clander Machines
    FAQ

    1. What does your factory do regarding quality control?
    We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

    2. What's the machine quality guarantee?
    Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

    3. Are you able to give installation and commissioning overseas?How long time will it take?
    Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

    4. How can I trust you to deliver the right machine as I ordered?
    We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.

    If you come to our factory, we can show the user around us.

    5. How can we go to your side?

    We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.

    Xy Rubber Calender Machine with Auxiliary Clander Machines
