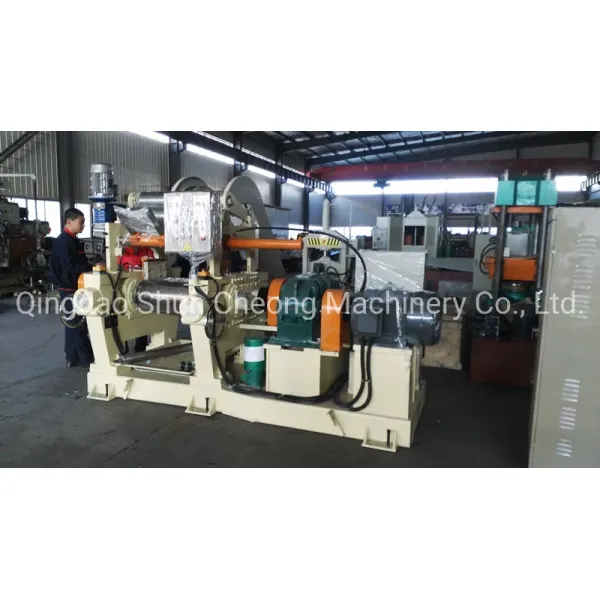

Open Mixing Mill / Two Roll Mixing Mill
Features:1. Alloy chilled cast iron rolls
2.Drilled type rolls(optional)
3.Double row spherical roller bearings
4. Hard tooth surface reducer
5. Manual or Electric gap adjustment
6. Stock blender(optional)
7. Stock guide
8.Pneumatic cutter(optional)
9. Emergency stop button
Description:1. This open mixing mill is ZSY series of square boxes hard-tooth
reducer. Low noise, higher safety factor, long service life. And
have foot and hands emergency brakes, increase the safety factor.
2. The rack on top of the gland welded steel plate, after annealing
treatment processing.
3. The roller cooling system is fully enclosed copper rotary joint.
4. It has foundation bolts make the machine be fixed on the ground.
5. The rollers are made of chilled alloy cast iron cast from a
specialized craft. The roller surface with a layer of the chilled
layer, Chilled layer hardness up to 68 ~ 72HS, the depth of the
chilled layer is 5 ~ 20mm, and the hard and wear-resisting.
6. The wires are connected machines, as long as the power supply is
connected, the machine can work.
Parameter:| Model | Roller(DxL)(mm) | Front Roller Linear Speed(m/min) | Friction Ratio | Motor Power
(KW) | Overall Dimension (LxWxH)(mm) |
| XK-160 | φ160x320 | 8.95 | 1:1.37 | 5.5 | 1500x750x1500 |
| XK-230 | φ230x600 | 10.21 | 1:1.19 | 15 | 2800x1200x1120 |
| XK-250 | φ250x620 | 14.1 | 1:1.17 | 18.5 | 3400x1500x1650 |
| XK-300 | φ300x750 | 15.1 | 1:1.25 | 22 | 3500x1600x1700 |
| XK-360 | φ360x900 | 16.25 | 1:1.25 | 30 | 3780x1850x1750 |
| XK-400 | φ400x1000 | 18.65 | 1:1.27 | 37 | 4350x1850x1785 |
| XK-450 | φ450x1200 | 24.26 | 1:1.27 | 55 | 5200x2380x1840 |
| XK-560 | φ560xφ510x1530 | 27.72 | 1:1.2 | 90 | 5845x2284x1978 |
| XK-550B | φ550x1500 | 27.94 | 1:1.22 | 110 | 5870x2475x2045 |
| XK-610 | φ610x2000 | 28.42 | 1:1.17 | 160 | 7070x2290x1840 |
| XK-660 | φ660x2130 | 28.6 | 1:1.24 | 245 | 7465x3662x2080 |
| XK-710 | φ710x2200 | 30 | 1:1.09 | 280 | 7500x3500x1800 |
PACKAGINGEquipment painting completed before delivery, and then wrapped with
stretch film, avoid rubbing the paint off the surface, wooden
packaging can be customized, key parts, such as electronic control
box, will be wrapped by shockproof packaging materials, and then
packed in wooden cases or container.
FAQ1. What does your factory do regarding quality control?We pay much more importance to quality control from the very
beginning to the end of production. Every machine will be fully
assembled and carefully tested before shipment.
2. What's the machine quality guarantee?Quality guarantee time is one year.We choose world famous brand
components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How
long time will it take?Yes, we can supply overseas service and technical support but
customer needs to pay for the cost of the installation. Small
machine usually takes within 2~3 days. Big production line usually
takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?We will absolutely deliver a good quality machine as we discussed
and confirmed in the order. The core of our company culture is
innovation,quality,integrity and efficiency. Also we have had many
good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?We are located in Qingdao City, Shandong province, China. The name
of airport is Qingdao liuting airport. We will pick up you at the
airport.
OUR SERVICE♦ Our engineers can design target machines for customers and send
them the drawing to confirm. We are always on the side of saving
your cost.
♦ In the process of production, we will take photos and send to
customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of
lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation
drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your
workers to operate the machine.
Welcome your inquiry!
