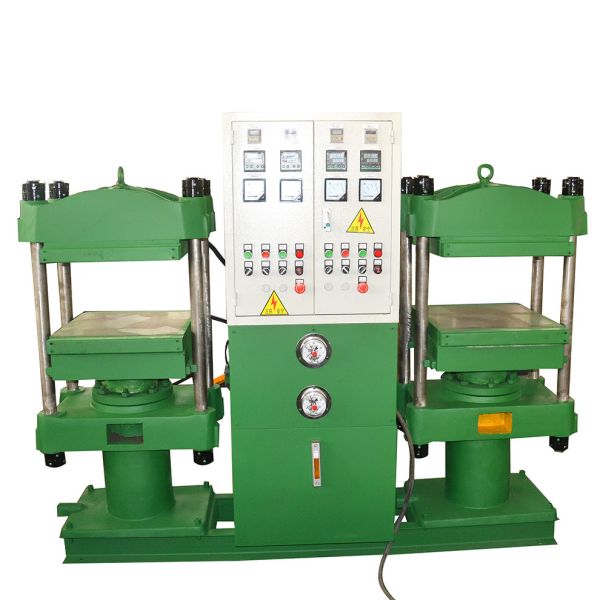

Company Direct Supply Duplex Curing Press & Double-Unit Vulcanizing
Machine
Production Overview
Two host machines can run simultaneously or separately, providing
flexible production capabilities.
Technical Specifications
| Model | Total Pressure (Ton) | Plate Size (mm) | Daylight (mm) | Piston Stroke (mm) | Hydraulic System Pressure (Mpa) | Cylinder Diameter (mm) | Motor Power (KW) | Overall Dimensions (L×W×H) (mm) |
|---|
| XLB-600×600 | 250 | 600×600×65 | 300 | 300 | 19.9 | 400 | 5.5×2 | 1200×580×1200 |
| XLB-650×650 | 300 | 650×650×70 | 350-500 | 350 | 19 | 450 | 7.5×2 | 1880×820×1680 |
Application
The machine applies to sulfurizing various kinds of rubber and
plastic model products as well as non-model products.
Key Features
- Moving bolster
- Buffering device for blanking
- Photo-electric protection device
- Digital display and control
- Industry touching screen monitor
- Oil heating or cooling device
- Ejecting device
- Safety device for slider
- Heating and temperature control
Electrical Control System
Complete control system including wiring, cables, and safety
protection devices. Uses automatic time relay to achieve automatic
close mold, exhaust, stuffy, vulcanization time, supplement
pressure, and open mold working processes. Easy switching between
automatic and manual control.
Production Capacity
This rubber tiles vulcanizer features 4 working layers, capable of
producing 8 pieces of rubber floor per hour. Working layers can be
customized according to customer needs. Includes manual push-out
device and supports molds from 20mm to 75mm thickness.
Machine Advantages
- Simple and convenient structure with flexible operation and
commodious space
- Cylinder and plunger made from high-quality materials
- Hydraulic station and electric cabinet located on both sides of
main engine
- Convenient operation
- No oil spilling or pressure loss
- CE Standards and ISO9001 SGS Certifications
Delivery & Payment
Delivery Lead Time: 35-40 days after receiving deposit
Packing Method:
- Wrapped with stretch film to prevent surface paint damage
- Custom wooden packaging available
- Key parts (electronic control box) wrapped with shockproof
materials and packed in wooden cases
Payment Terms: T/T (30% deposit, 70% balance against B/L); L/C
Our Services
- Overseas service and technical support
- Timely machine dispatch
- 24-hour online service with immediate response
- Machine testing available to ensure customer satisfaction
- Custom design, drawing services, and OEM rubber machines
- Shipment arrangement with 7-day advance notification
Related Products
About Our Company
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. is a
Chinese manufacturer established in 2007 with over 10 years of
experience in rubber machinery manufacturing. Certified with ISO
9001:2008, SGS, and CE certificates.
Product Range: Rubber kneader/mixing mill, various plate vulcanizing presses,
2/3/4 roll rubber calenders, rubber batch off coolers, waste tire
recycling lines, reclaimed rubber production lines, conveyor belt
production lines, rubber seals extruding & vulcanizing lines.
Global Market: Our machinery has been exported to America, Mexico, India,
Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia,
Sri Lanka, and many other countries and regions.
Custom Solutions: Professional engineers and teams available for OEM/ODM machines
based on customer requirements. Overseas engineer services
available.
