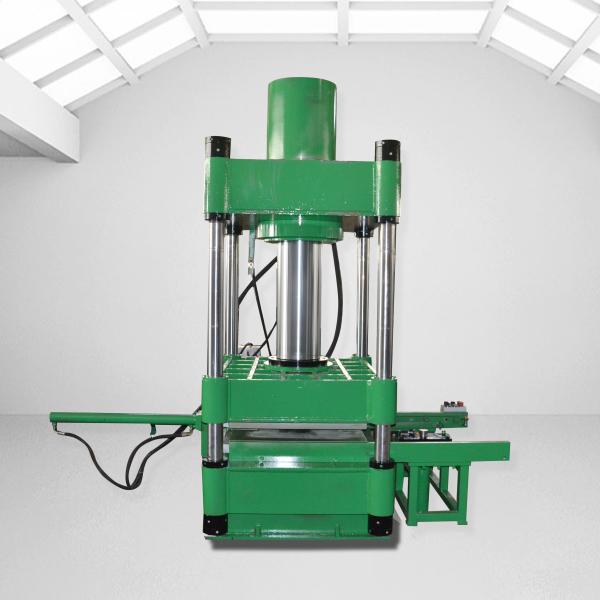

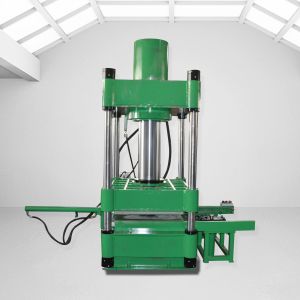

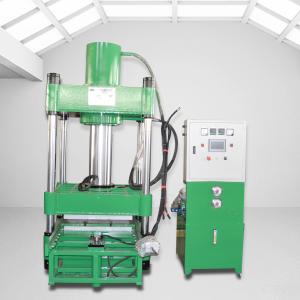

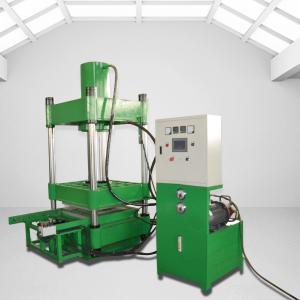

    Solid Tyre Vulcanizing Curing Press Machine

    Ask Lasest Price
    Brand Name : SFC
    Model Number : XLB-D
    Certification : CE,ISO
    Price : USD5000-20000
    Payment Terms : L/C, T/T
    Supply Ability : 50Sets/month
    Delivery Time : 45days
    • Product Details
    • Company Profile

    Solid Tyre Vulcanizing Curing Press Machine

    Solid tyre vulcanizing/curing press machine


    1Total pressure2.00MN200t
    2Plate size800×800×56mmMaterial:Q235 High quality carbon steel
    3Quantity of hot plate2 pcs
    4Working layer1 Layer
    5Heating modeElectrical heating
    6Heating temperature0-300°C
    7Plate pressure31.25kg/cm²
    8Daylight750mm
    9Piston stroke540mm
    10Diameter of pistonφ360mm/ φ280mm
    11Quantity of main oil cylinder1 Set(upper)
    12Push and pull modehydraulic push and pull
    13Diameter of push and pull cylinderΦ50mm/ φ25mm
    14Quantity of push and pull cylinder1 pcs
    15Ejector cylinder diameterΦ80mm/ φ45mm
    16Quantity of ejector cylinder1 pcsFinished parts
    17Motor power6-5.5
    18Maximum operating system pressure20Mpa
    19Control modePLC Automatic controlMitsubishi
    20Major electrical device brandsChint
    21Structure stylePillar type,upper cylinder
    Note1,The machine has the functions of automatic mold clamping, automatic exhaust, automatic pressure supplement, vulcanization timing, automatic constant temperature, time alarm, automatic mold opening and so on.
